Planning to drive hard or need more stopping power? We've got the solution.
Don't look like a complete fool and let brake pad fade or boiling brake fluid ruin your day (or car) while you are driving hard and stopping repeatedly. We've learned that the hard and embarrassing way. This big brake kit will help keep those problems away by reducing overall brake temperatures and extending performance capabilities while saving weight, increasing brake pedal feel and response!

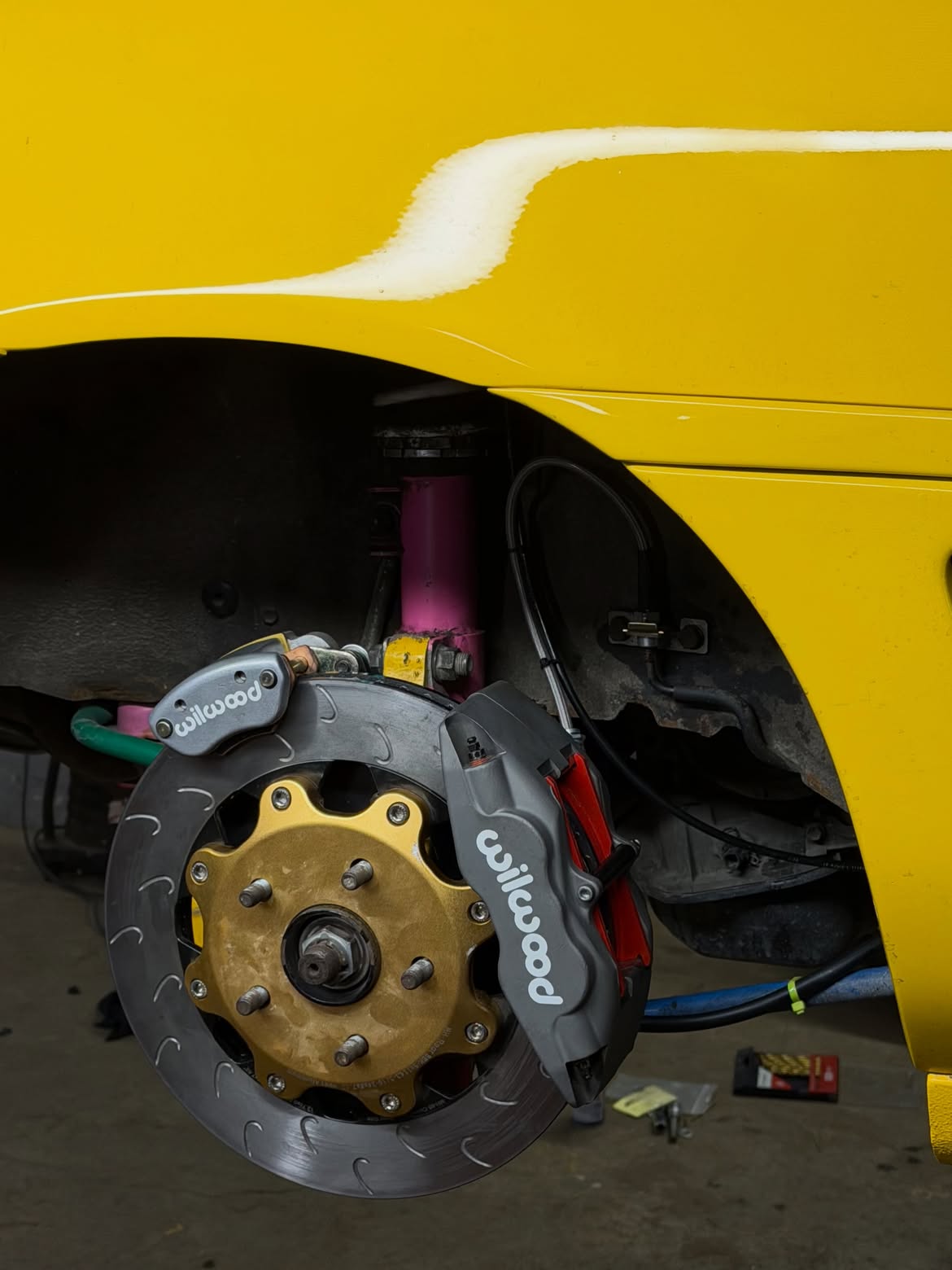

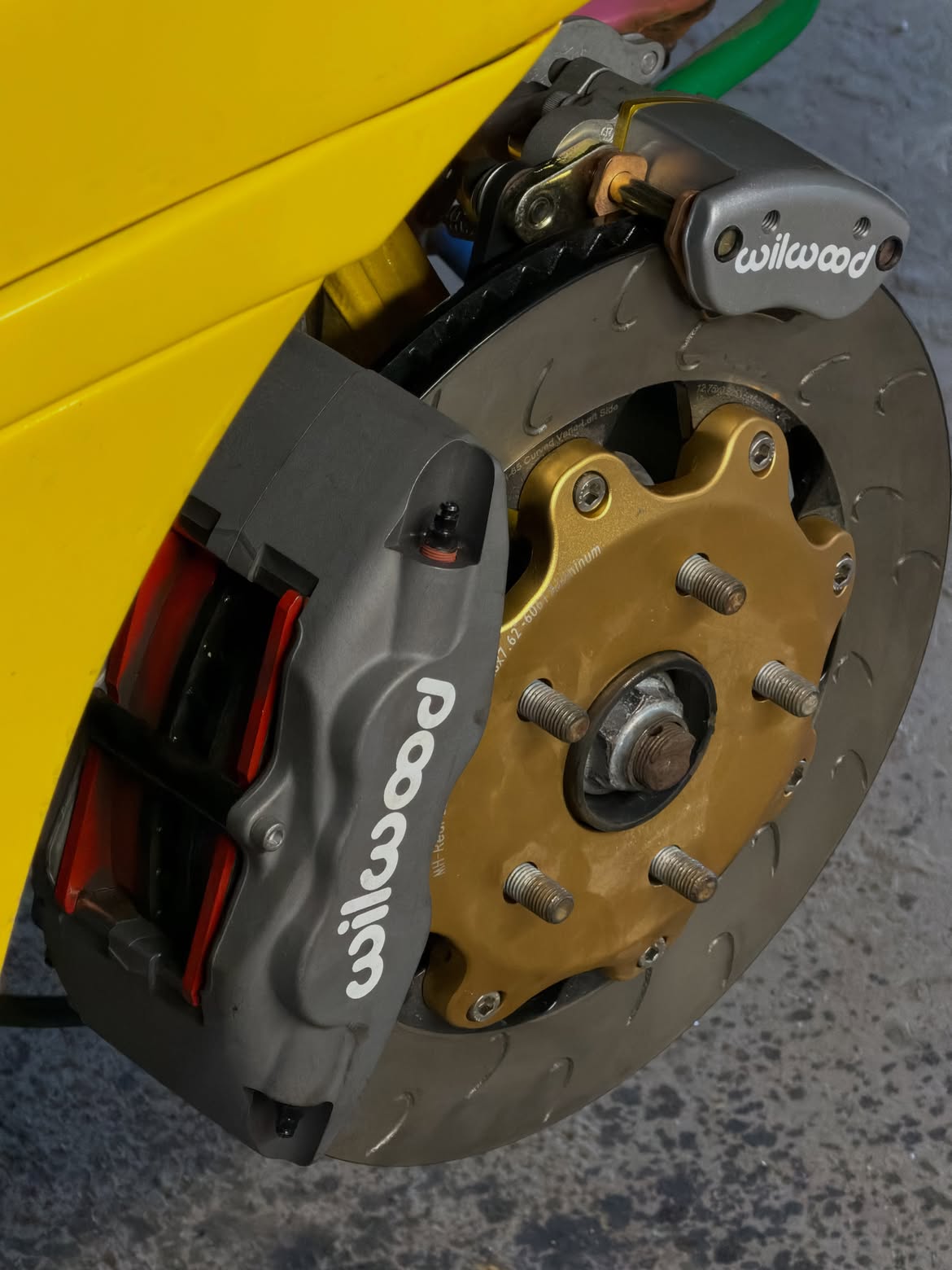

These Big Brake Kit brackets bolt up to the Rear of the 91-98 MR2 to accept a larger, lighter and more capable Wilwood forged superlite brake caliper and significantly larger 12.72" diameter Rotor for the ultimate high performance braking solution. These rotors will be the same diameter as the front BBK while being slightly thinner to promote proper pad temperature and brake bias.
Type A, B or C?
Due to our big brake kits having to cater to numerous rotor and pad choices, we now make 3 different types of caliper mounting brackets for rears. The purpose between our rear bracket types is simply caliper offset.
Type A - This bracket fits all rotors. Perfect for Hawk/EBC pads. This pad is not for Wilwood pads as there will be pad overhang where brake pads sit past the rotor's chamfered edge.
Type B - This bracket is only ideal for Stoptech Rotor Only. Good with all pads, but Hawk/EBC will be sunken in the most out of all 3 brackets. Do not use for our 1 piece or 2 piece rotors as caliper may come into contact rotor edge.
Type C - Ships by default. This bracket works with all components. Perfect for our 1 piece and 2 piece rotors. Works for Hawk/EBC (sunken into rotor). Stoptech rotors on hawk/ebc pads is decent. Stoptech rotor/Wilwood pad combo is usable with 0-0.3mm of pad overhang past rotor's chamfered edge when cold (also depends on ST rotor tolerances) but some heat/rotor thermal expansion as well as rotor spinning may negate any issues that arise - If this is a concern for you on ST rotors, we recommend type B).
If you are an existing big brake kit customer of ours with a valid order # and want to exchange, contact us via email and we will be more than happy to exchange caliper brackets free of charge for you, minus shipping costs.
- Made of 7075-T6 Aerospace grade aluminum
- Extremely lightweight (1/3 of weight of steel)
- Stronger than most common steel
- Hard anodized for even better protection than standard anodizing
Designed to be used in combination with
- Calipers - Wilwood Forged Superlite
- Part# 120-11125, 120-11126 or 120-11128 depending on your application and intended brake bias.
- Brake pads (Wilwood) (Order a set of any below)
- BP10 (Part# 150-8854K) - Street
- BP20 (Part# 150-9416K) - Street/Moderate Race
- Rotors (Order 2 Rotors, Left and Right side if applicable)
- RX8 Front Support Suspension Rotors (blanks, non-directional) - 120.45071
- RX8 Front Support Suspension Rotors (Slotted, Left) - 126.45071SL
- RX8 Front Support Suspension Rotors (Slotted, Right) - 126.45071SR
- RX8 Front Support Suspension Rotors (Slotted & Drilled, Left) - 127.45071L
- RX8 Front Support Suspension Rotors (Slotted & Drilled, Right) - 127.45071R
- Can also use and order our 1 piece rotors here
- Or our 2 piece rotors here here & here
- 2x Brake Brackets
- We also sell full rear and front kits
Optional Wilwood Rear Mechanical Parking Brake Caliper kit here
- Don't forget to buy some nice high temp DOT 4 or higher fluid to complete your brake upgrade.
- These brake parts are intended for off road use only, they are not intended to be used on the streets/highways. Whatever you do with your car is up to you and your responsibility.
- While we strive for the highest quality brake components accessible to us, we are not responsible for any damages, injuries, accidents or death to you or others due to the use and installation of these supplied parts. All responsibility is on is on you. Ordering from us or using our supplied brake parts constitutes your agreement to these disclaimers.
