Both CF and Black Painted ABS Variants in stock and ready to ship
Purpose
The highest quality possible, bar none, exclusive only at MR2Heaven
Features
- 3D Scanned to 0.02mm accuracy
- CADed for symmetry

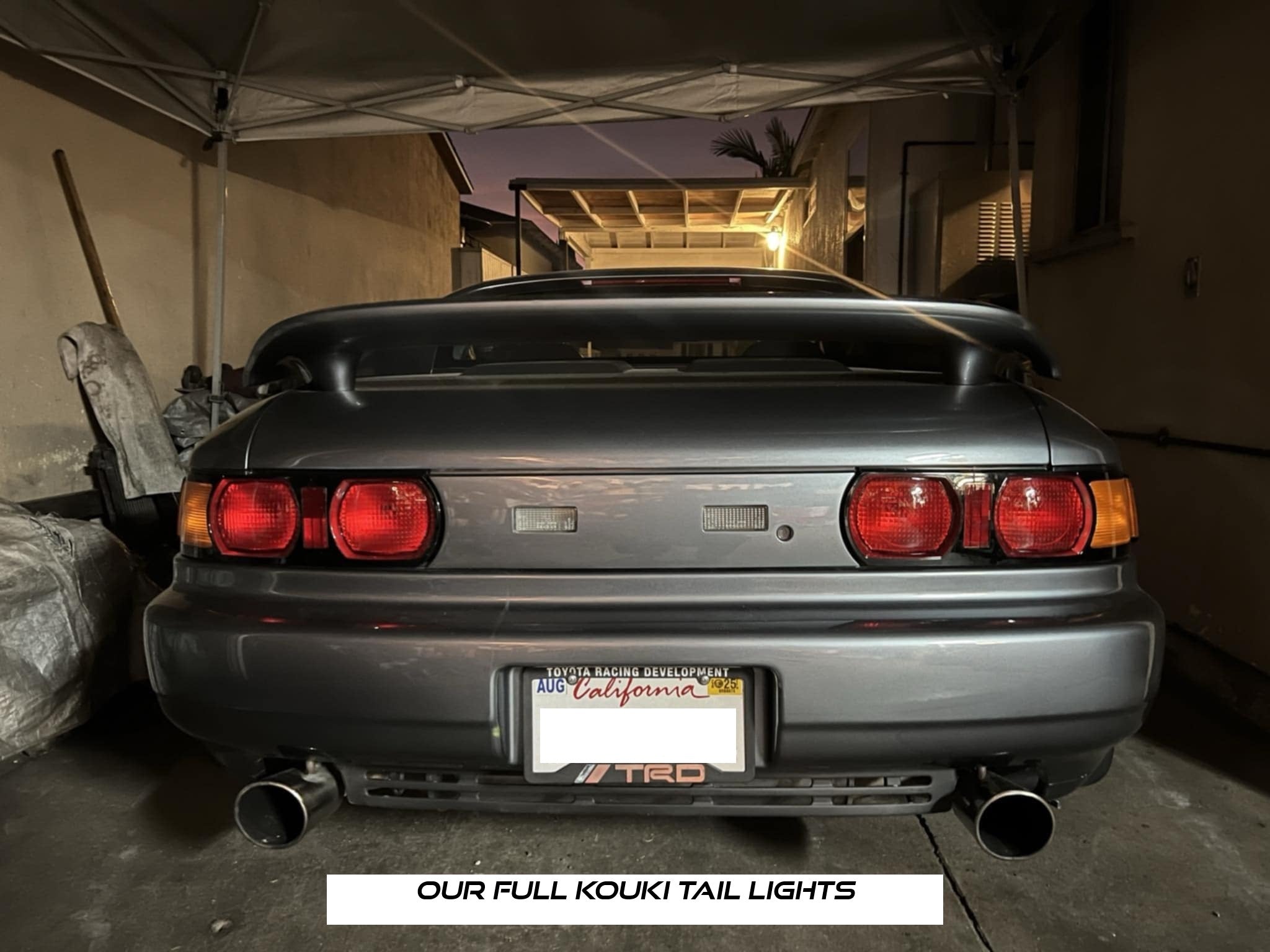

- Drop in plug and play, no modifications necessary (assuming you already have a complete set of kouki tail lights installed)

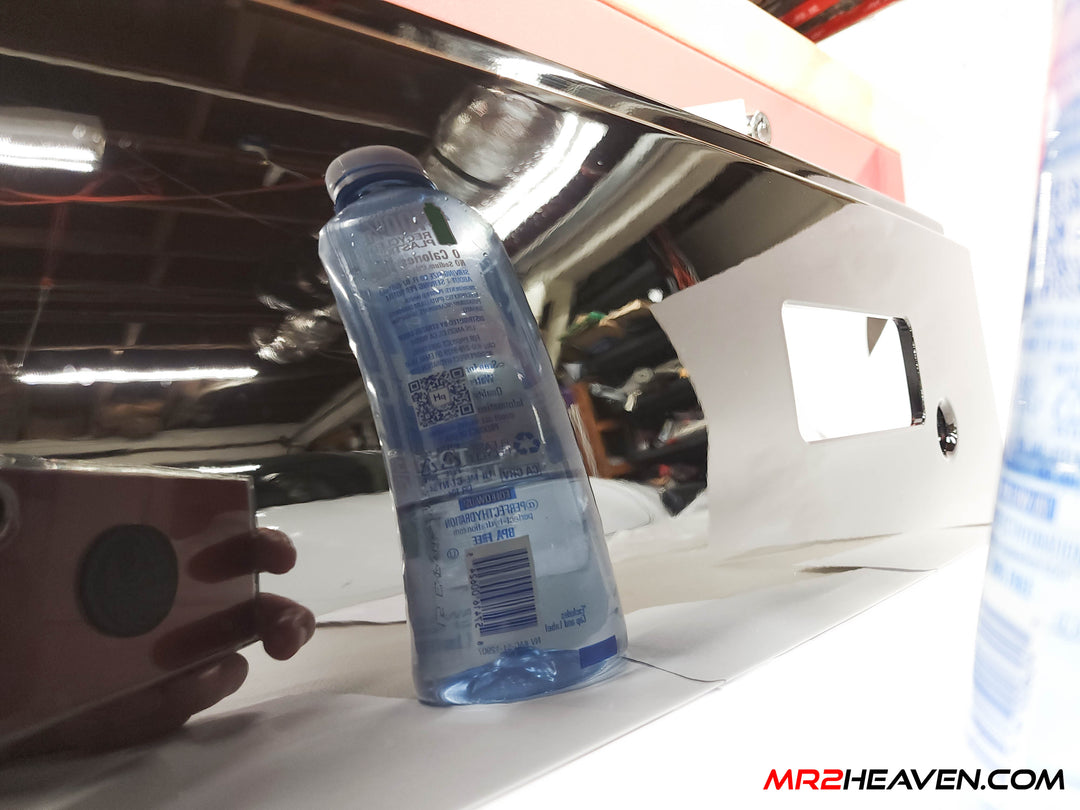

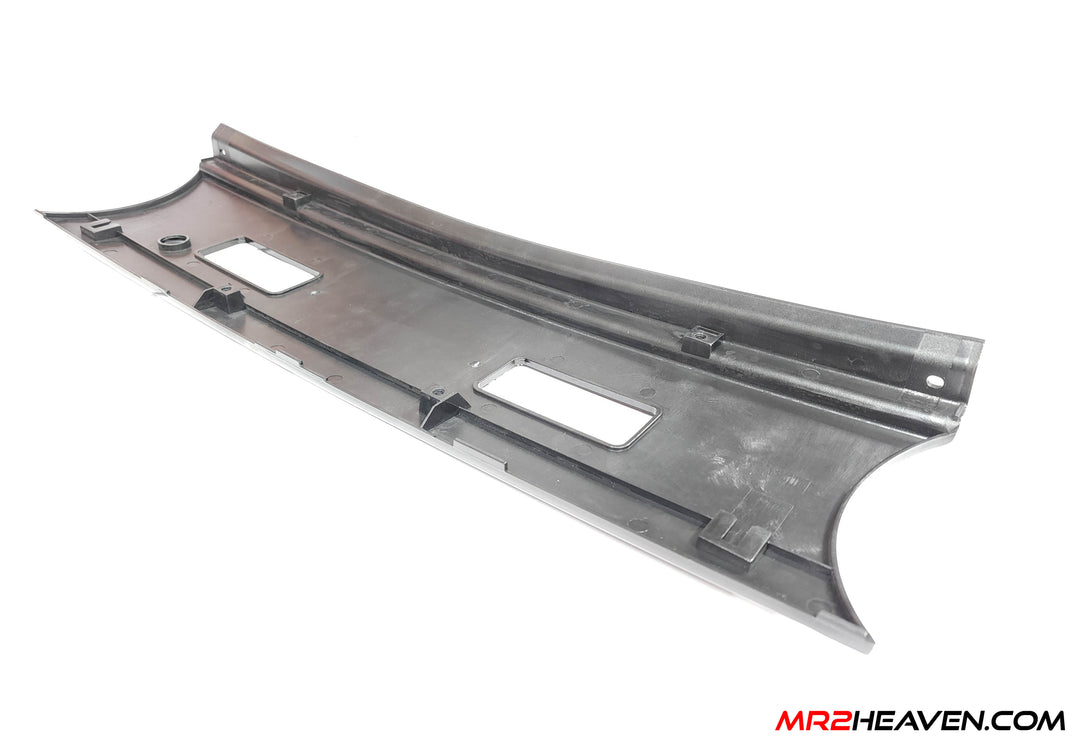

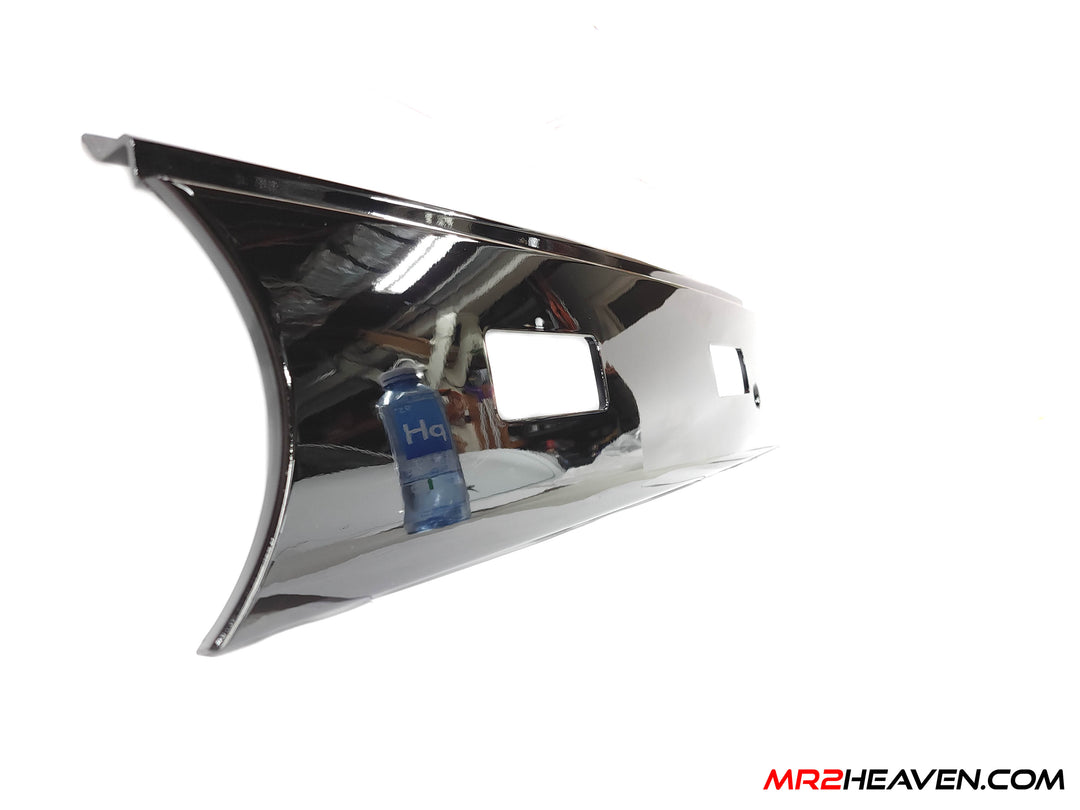

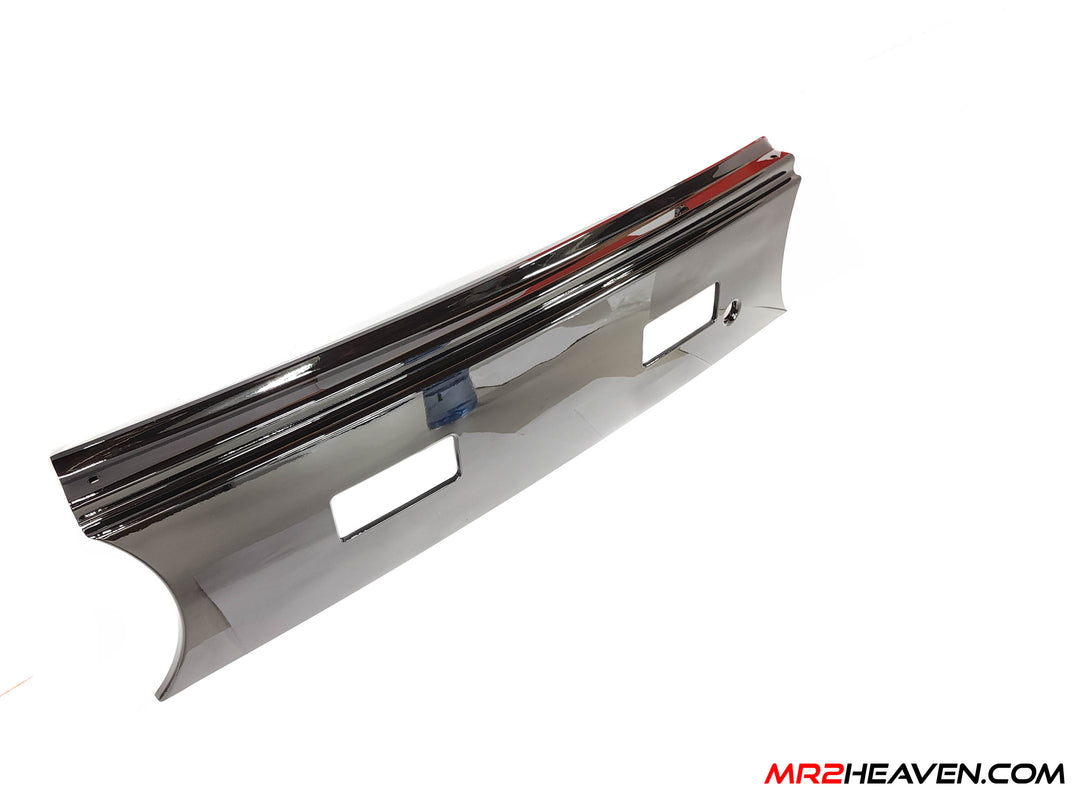

- Plastic injected ABS material painted gloss black with clear coat

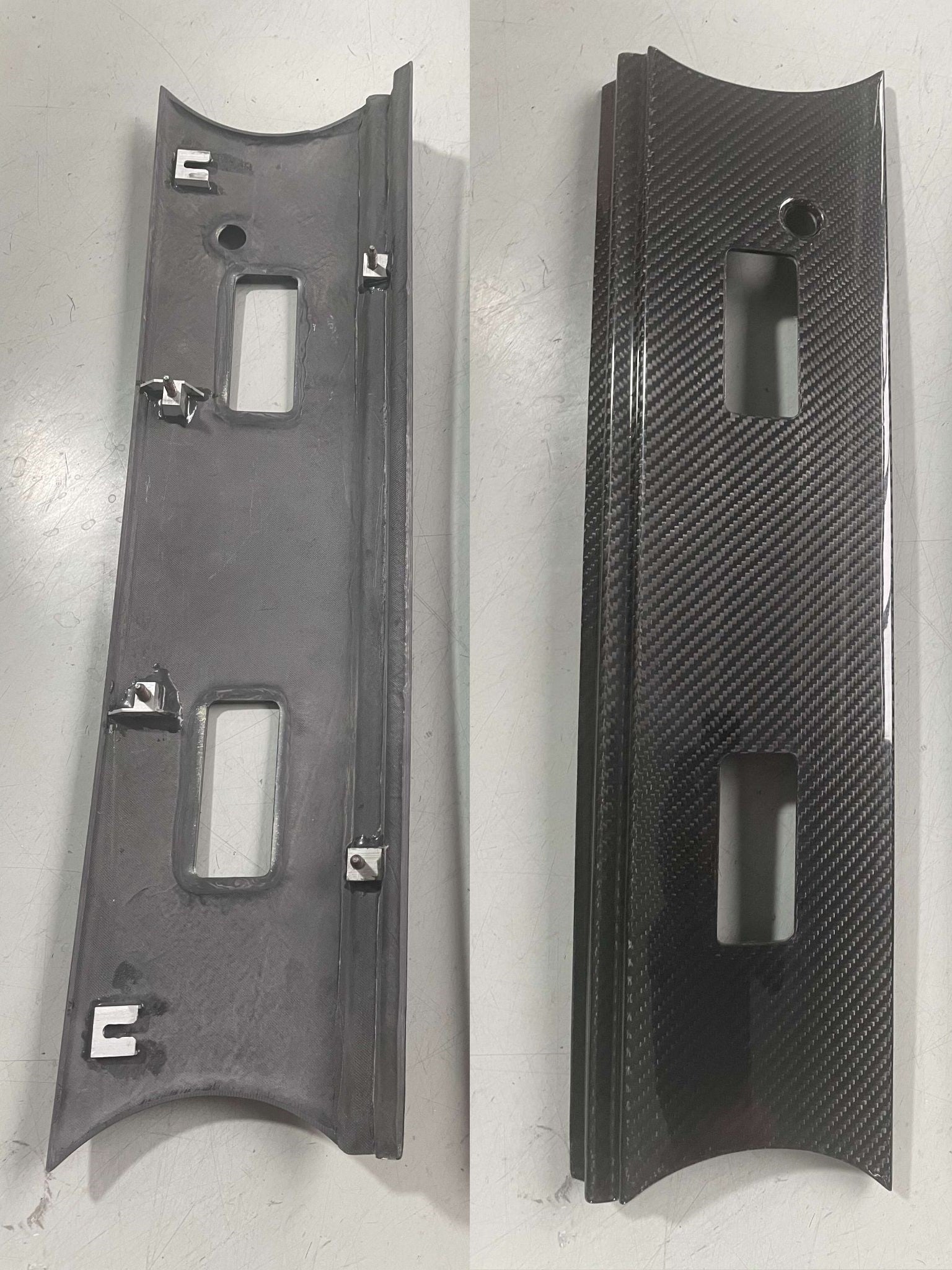

- Dry Prepreg carbon fiber constructed out of an aluminum mold and oven cured under pressure over many hours
- Billet Aluminum 6061 misc bits glued via epoxy onto grooves cut out via CNC
- Other cut outs made via CNC machine and tooling fixtures
Includes

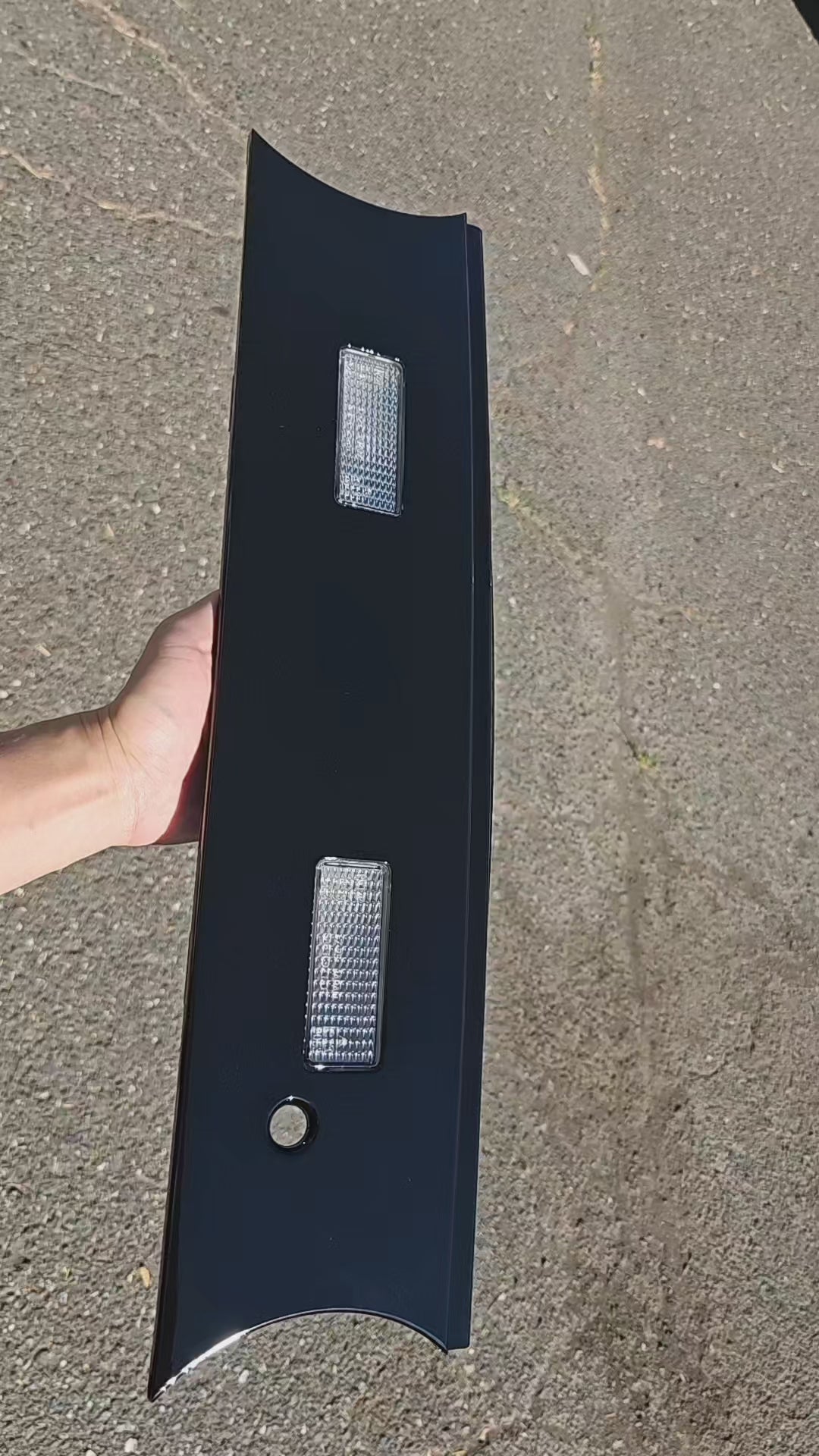

- 1x Taillight center panel in requested material
- All clips and mounting bases attached and ready to go (Dry CF Variant)
- Hardware Pack (For OEM reverse light assembly)
- 4x M6x1.0 threaded rods (Do not tighten these all the way, follow instructions below)
- 4x M6x1.0 flanged nuts
Fitment

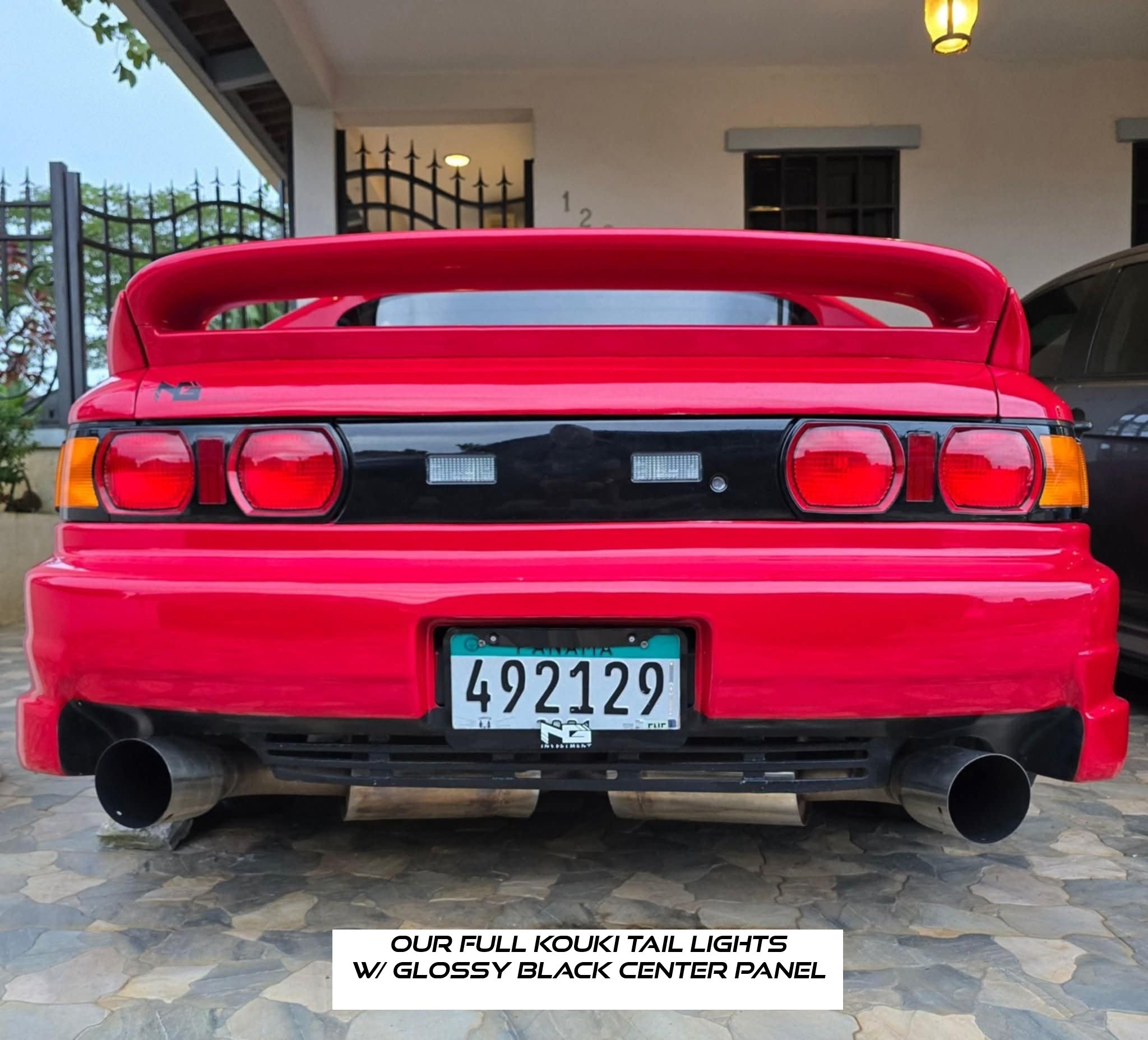

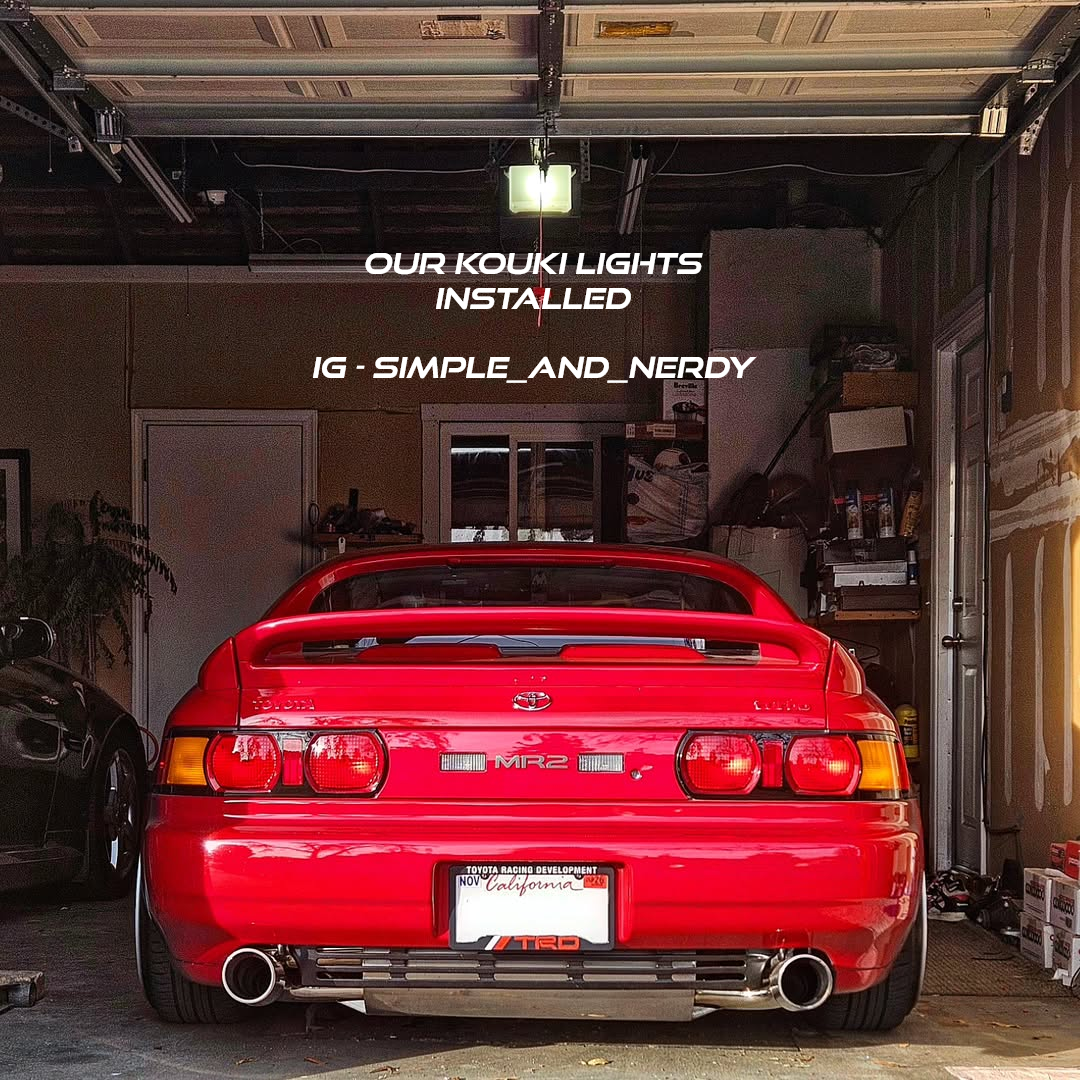

- Fits all 1991-1998 Toyota MR2 with 94 and newer tail lights
Notes
- Does not come with OEM 1994+ left and right side mounting brackets
- Does not come with OEM 1994+ reverse light assembly
- Does not come with OEM 1994+ kouki extended lock assembly
- Does not come with OEM 1994+ "MR2" emblem
- Replaces 75082-17050
-

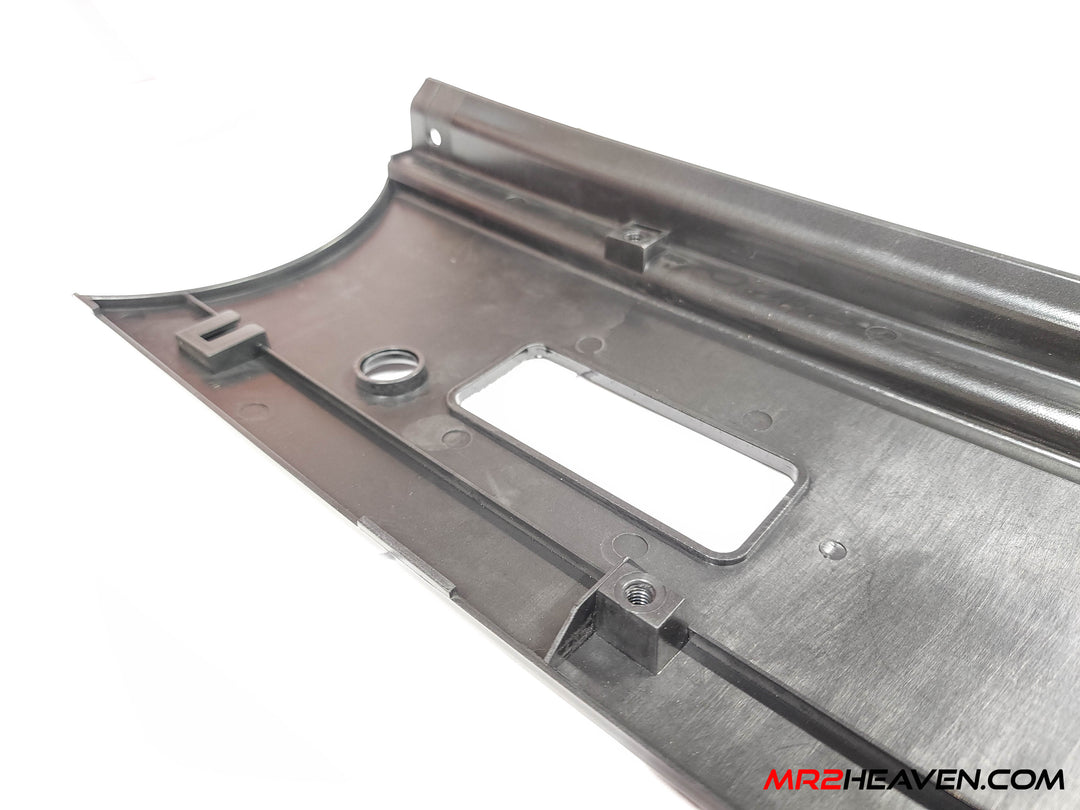

Assembly - Very Important - When assembling reverse light housings onto black ABS center panel, do not install the provided 4 threaded studs all the way, or you will puncture a hole/leave a dent through plastic on front side causing permanent damage. When tightening the 4x 10mm M6 nuts to secure, use allen key wrench to hold stud from rotating when tightening nuts. Before fully tightening, make sure reverse lenses are properly centered.
- Total Stud Length is 29.85mm. Using a caliper, tighten TOP 2 studs inward until a maximum of 22.80mm is sticking out/height of stud protrusion as shown below - Going past 22.50mm will result in damage.
- Bottom 2 studs - More threads to work with, for BOTTOM 2 studs, tighten inwards for max stud height protrusion of 16.5-17mm - Going past 15.5mm will result in damage.
